Volt Gauge:

• Main Features:
  - Condition: Brand new
  - Used to measure the voltage of automobile power.
  - Orange light on the dial for easy reading in the darkness.
  - Measurement range is 8~16V.
  - Lighting on the dial for easy reading in the darkness.
  - High sensitivity and easy operation.
  - Easy Installation: Professional installation is highly recommended.
• Color: Black
• Unit: Volt
• Measurement Range: 8~16V
• Power: 12V DC, Max. 0.3A
• Universal Fit for: Most of cars or motors
• Note: When the white-pointer stop running, please take out the LED bulb from the rear, and turn the white-pointer around for several times with a thin iron wire, then check it

Ammeter Gauge:

• Main Features:
  - 2" ammeter gauge
  - Scale 60 - 0 - 60
  - Back-Lit for night operation
  - Includes mounting bracket, lighting and mounting hardware
• Mounting: Mount directly in 2" cable
• Systems: 12 volt systems
• Hole Diameter: 2"
• Meter OD: 16"
• Meter depth from front of panel to the end of the mounting studs is 15" / 16"
• Diameter: 53mm / 2inch
• Inside Diameter of The Screen：43mm / 1.7inch
• Outside Diameter of The Screen：56mm / 2.2inch

Oil Temp Gauge:

• Main Features:
  - Black shell and white light.
  - Numbers clearly show the oil temperature.
  - Used to measure the oil temperature of automobile.
  - Measurement range is 50-150 Celsius .
  - High sensitivity and easy operation.
• Condition: Brand new
• The Shell Color：Black
• The Light Color: White
• Power: 12V DC, Max. 0.3A
• Sensor Mounting Thread: 10mm / 0.4inch
• The Wire Length: 114mm / 4.5inch
• The Diameter of The Installation: 52mm / 2inch
• The Inner Diameter of The Screen：43mm / 1.7inch
• The Outer Diameter of The Screen：56mm / 2.2inch
• Read: 50 - 150C

Oil Pressure Gauge :

• Main Features:
  - Condition:100% New.Used to measure the oil pressure of automobile.
  - Lighting on the dial for easy reading in the darkness.
  - Numbers and thepointer clearly show
  - Easy Installation: Professional installation is highly recommended.
  - 1 year warranty
• Power: Professional 12V
• Color: Black
• The Light Color: White
• Diameter: 2 inch / 52mm
• Read: 0 - 100PSI
• Universal Fit for: Most of cars or motors

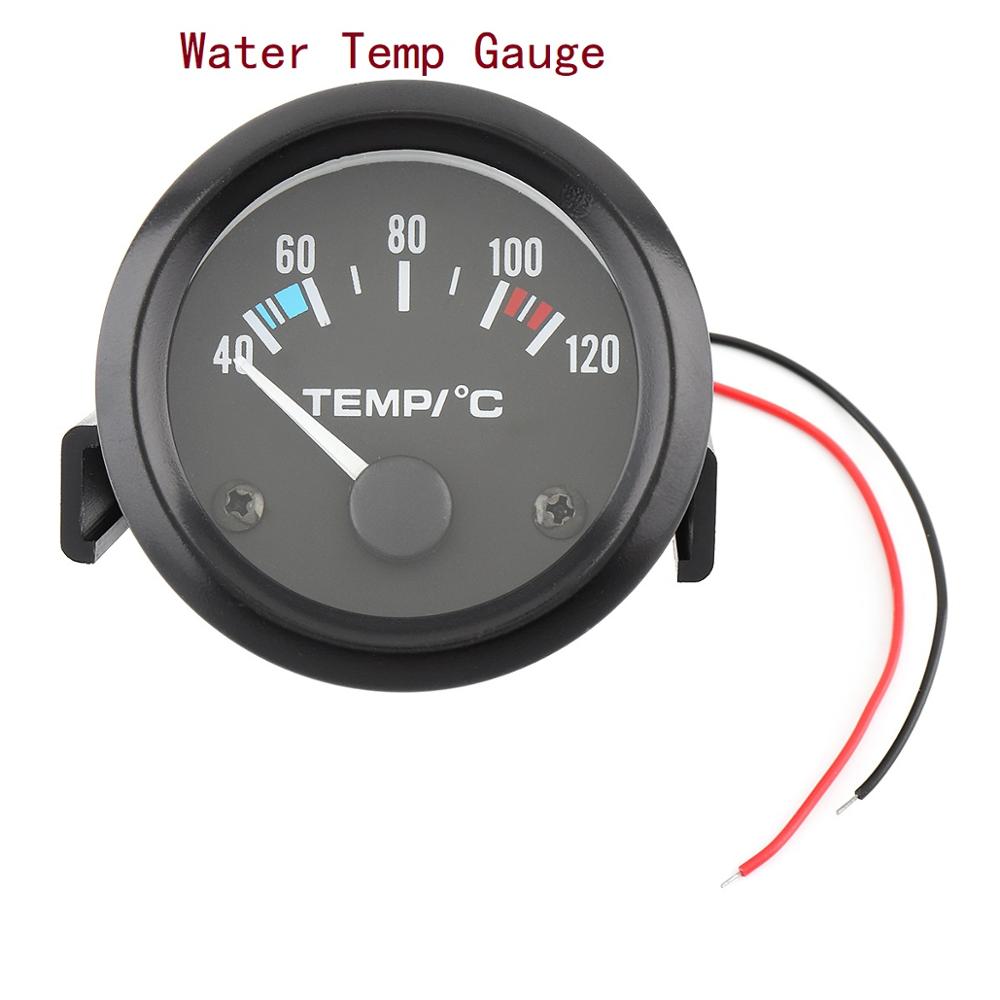

Water Temp Gauge:

• Main Features:
  - Black shell and white light
  - Numbers and pointing clearly show the water temperature.
  - Used to measure the water temperature of automobile.
  - Measurement range is 40-120℃.
  - High sensitivity and easy operation.
• The Shell Color:Black
• The Light Color: White
• Power: 12V DC, Max. 0.3A
• Diameter:2 inch / 52mm
• Outer Diameter of The Screen:56mm / 2.2inch
• Inner Diameter of The Screen:43mm / 1.7inch
• Read: 40 - 120 ℃
• Sensor Mounting Thread: 10mm / 0.4inch

Fuel Meter:

• Main Features:
  - Gauge is lighted.
  - Comes with detailed instructions.
  - Used to measure the fuel level of automobile.
  - High sensitivity and easy operation.
• Condition: Brand New
• Power: 12V
• The Light Color: White
• Read: E - 1 / 2 - F
• Diameter: 52mm / 2inch
• Inside Diameter of The Screen：43mm / 1.7inch
• Outside Diameter of The Screen：56mm / 2.2inch
